<span><strong>Rolamentos de esferas de contato angular</strong> combinados</span> Fabricantes

Rolamentos de esferas de contato angular combinados

<span><strong>Rolamentos de esferas de contato angular</strong> combinados</span>

Solicite uma cotação

Sobre nós: http://bearing-products.com.br/1-3-thrust-ball-bearings.html

Designação do rolamento			Dimensões máximas					Capacidade de carga				Limite de velocidade		Distância dos pontos de trabalho		Ombro						Massa
			(mm)					( kN )				(rpm)		(mm)		(mm)						(kg)
								Com gaiola		Com gaiola prensada						(mm)

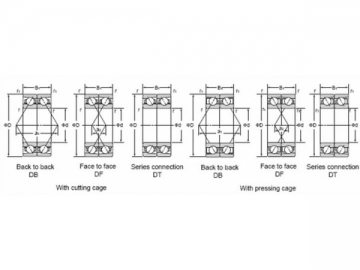

Costas com costas séries	Face a face séries	Conexões séries	d	D	B1	r	r1	Cr	Cor	Cr	Cor	Graxa	Óleo	a1	a2	da	db	Da	Db	ra	rb	Aprox.
DB	DF	DT	d	D	B1	(min.)	(min.)	Cr	Cor	Cr	Cor	Graxa	Óleo	a1	a2	(min.)	(min.)	(máx.)	(máx.)	(máx.)	(máx.)	Aprox.
7000BDB	7000BDF	7000BDT	10	26	16	0.3	0.15	7.55	4.35	0	0	20000	27000	23.1	7.1	12.5	0	23.5	24.8	0.3	0.15	0.042
7000CDB	7000CDF	7000CDT	10	26	16	0.3	0.15	8.6	4.95	0	0	37000	50000	12.7	3.3	12.5	0	23.5	24.8	0.3	0.15	0.042
7000DB	7000DF	7000DT	10	26	16	0.3	0.15	8.1	4.65	0	0	27000	34000	18.2	2.2	12.5	0	23.5	24.8	0.3	0.15	0.042
7001BDB	7001BDF	7001BDT	12	28	16	0.3	0.15	8.1	5.05	0	0	18000	24000	25.2	9.2	14.5	0	25.5	26.8	0.3	0.15	0.048
7001CDB	7001CDF	7001CDT	12	28	16	0.3	0.15	9.4	5.85	0	0	32000	43000	13.5	2.5	14.5	0	25.5	26.8	0.3	0.15	0.048
7001DB	7001DF	7001DT	12	28	16	0.3	0.15	8.8	5.45	0	0	23000	29000	19.9	3.9	14.5	0	25.5	26.8	0.3	0.15	0.048
7002BDB	7002BDF	7002BDT	15	32	18	0.3	0.15	9.05	6.3	0	0	15000	20000	29.2	11.1	17.5	0	29.5	30.8	0.3	0.15	0.07
7002CDB	7002CDF	7002CDT	15	32	18	0.3	0.15	10.7	7.4	0	0	28000	37000	15.3	2.7	17.5	0	29.5	30.8	0.3	0.15	0.068
7002DB	7002DF	7002DT	15	32	18	0.3	0.15	9.95	6.85	0	0	20000	26000	22.6	4.6	17.5	0	29.5	30.8	0.3	0.15	0.068
7003BDB	7003BDF	7003BDT	17	35	20	0.3	0.15	9.9	7.5	0	0	14000	18000	32.2	12.2	19.5	0	32.5	33.8	0.3	0.15	0.096
7003CDB	7003CDF	7003CDT	17	35	20	0.3	0.15	11.9	8.95	0	0	25000	33000	17.1	2.9	19.5	0	32.5	33.8	0.3	0.15	0.087
7003DB	7003DF	7003DT	17	35	20	0.3	0.15	10.9	8.25	0	0	18000	23000	25.3	5.3	19.5	0	32.5	33.8	0.3	0.15	0.09
7004BDB	7004BDF	7004BDT	20	42	24	0.6	0.3	15.2	11.1	0	0	11000	15000	38.4	14.4	24.5	0	37.5	39.5	0.3	0.3	0.158
7004CDB	7004CDF	7004CDT	20	42	24	0.6	0.3	18	13.2	0	0	21000	28000	20.4	3.6	24.5	0	37.5	39.5	0.3	0.3	0.158
7004DB	7004DF	7004DT	20	42	24	0.6	0.3	16.7	12.2	0	0	15000	19000	30.2	6.2	24.5	0	47.5	39.5	0.3	0.3	0.158
7005BDB	7005BDF	7005BDT	25	47	24	0.6	0.3	16.6	13.4	0	0	10000	13000	42.3	18.3	29.5	0	42.5	44.5	0.3	0.3	0.182
7005CDB	7005CDF	7005CDT	25	47	24	0.6	0.3	20.0.	16	0	0	18000	24000	21.7	2.3	29.5	0	42.5	44.5	0.3	0.3	0.182
7005DB	7005DF	7005DT	25	47	24	0.6	0.3	18.3	14.8	0	0	13000	17000	32.9	8.9	29.5	0	42.5	44.5	0.3	0.3	0.182
7006BDB	7006DF	7006DT	30	55	26	1	0.6	23.6	20.2	0	0	11000	14000	37.5	11.5	35.5	0	49.5	50.5	1	0.5	0.266
7007BDB	7007BDF	7007BDT	35	62	28	1	0.6	25.7	22.8	0	0	7400	9900	55.1	27.1	40.5	0	56.5	57.5	1	0.5	0.341
7007CDB	7007CDF	7007CDT	35	62	28	1	0.6	31	27.4	0	0	13000	18000	27	1	40.5	0	56.5	57.5	1	0.5	0.338
7007DB	7007DF	7007DT	35	62	28	1	0.6	28.4	25.2	0	0	9800	12000	42.3	14.3	40.5	0	56.5	57.5	1	0.5	0.339
7008BDB	7008BDF	7008BDT	40	68	30	1	0.6	27.4	26.4	0	0	6600	8900	60.5	30.5	45.5	0	62.5	63.5	1	0.5	0.424
7008CDB	7008CDF	7008CDT	40	68	30	1	0.6	33.4	31.8	0	0	12000	16000	29.5	0.5	45.5	0	62.5	63.5	1	0.5	0.417
7008DB	7008DF	7008DT	40	68	30	1	0.6	30.4	29.2	0	0	8900	11000	46.3	16.3	45.5	0	62.5	63.5	1	0.5	0.419
7009BDB	7009BDF	7009BDT	45	75	32	1	0.6	32.5	32	0	0	6000	8000	66.3	34.3	50.5	0	69.5	70.5	1	0.5	0.546
7009CDB	7009CDF	7009CDT	45	75	32	1	0.6	39.6	38.5	0	0	11000	15000	32.1	0.1	50.5	0	69.5	70.5	1	0.5	0.531
7009DB	7009DF	7009DT	45	75	32	1	0.6	36.2	35.4	0	0	8000	10000	50.7	18.7	50.5	0	69.5	70.5	1	0.5	0.531
7010BDB	7010BDF	7010BDT	50	80	32	1	0.6	34.5	36.2	0	0	5500	7400	70.5	38.5	55.5	0	74.5	75.5	1	0.5	0.595
