<strong>Rolamentos de esferas de contato angular</strong> com uma carreira Fabricantes

Rolamentos de esferas de contato angular com uma carreira

<strong>Rolamentos de esferas de contato angular</strong> com uma carreira

Solicite uma cotação

Sobre nós: http://bearing-products.com.br/1-3-1-single-direction-thrust-ball-bearings.html

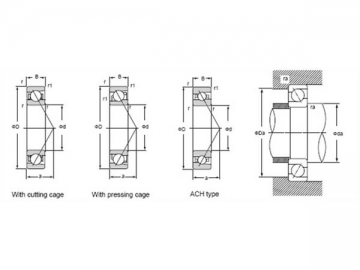

Designação do rolamento	Dimensões máximas					Capacidade de carga				Limite de velocidade		Posição de trabalho	Dimensões			Massa
Designação do rolamento	(mm)					Com gaiolas (kN)		Com gaiola prensada (kN)		(rpm)		(mm)	(mm)			(kg)
	d	D	B	r	r1	Cr	Cor	Cr	Cor	Graxa	Óleo	a	da	Da	ra	Aprox.
	d	D	B	(min.)	(min.)	Cr	Cor	Cr	Cor	Graxa	Óleo	a	(min.)	(max.)	(max.)	Aprox.
7000	10	26	8	0.3	0.15	5	2.35	0	0	34000	42000	9.1	12.5	23.5	0.3	0.021
7000B	10	26	8	0.3	0.15	4.65	2.15	0	0	25000	33000	11.6	12.5	23.5	0.3	0.021
7000C	10	26	8	0.3	0.15	5.3	2.45	0	0	47000	62000	6.4	12.5	23.5	0.3	0.021
7001	12	28	8	0.3	0.15	5.4	2.75	0	0	29000	37000	9.9	14.5	25.5	0.3	0.024
7001B	12	28	8	0.3	0.15	4.95	2.5	0	0	22000	29000	12.6	14.5	25.5	0.3	0.024
7001C	12	28	8	0.3	0.15	5.8	2.95	0	0	40000	54000	6.7	14.5	25.5	0.3	0.024
7002	15	32	9	0.3	0.15	6.1	3.45	0	0	26000	32000	11.3	17.5	29.5	0.3	0.035
7002B	15	32	9	0.3	0.15	5.55	3.15	0	0	19000	25000	14.6	17.5	29.5	0.3	0.035
7002C	15	32	9	0.3	0.15	6.6	3.7	0	0	35000	47000	7.6	17.5	29.5	0.3	0.035
7003	17	35	10	0.3	0.15	6.75	4.15	0	0	23000	28000	12.7	19.5	32.5	0.3	0.045
7003B	17	35	10	0.3	0.15	6.1	3.75	0	0	17000	23000	16.1	19.5	32.5	0.3	0.045
7003C	17	35	10	0.3	0.15	7.3	4.45	0	0	31000	41000	8.6	19.5	32.5	0.3	0.045
7004	20	42	12	0.6	0.3	10.3	6.1	0	0	19000	24000	15.1	24.5	47.5	0.6	0.079
7004B	20	42	12	0.6	0.3	9.35	5.55	0	0	14000	19000	19.2	24.5	37.5	0.6	0.079
7004C	20	42	12	0.6	0.3	11.1	6.6	0	0	26000	35000	10.2	24.5	37.5	0.6	0.079
7005	25	47	12	0.6	0.3	11.3	7.4	0	0	17000	21000	16.4	29.5	42.5	0.6	0.091
7005B	25	47	12	0.6	0.3	10.2	6.7	0	0	12000	17000	21.1	29.5	42.5	0.6	0.091
7005C	25	47	12	0.6	0.3	12.3	9	0	0	23000	30000	10.8	29.5	42.5	0.6	0.091
7006	30	55	13	1	0.6	14.5	10.1	0	0	14000	18000	18.8	35.5	49.5	1	0.133
7006B	30	55	13	1	0.6	13.1	9.2	0	0	11000	14000	24.3	35.5	49.5	1	0.133
7006C	30	55	13	1	0.6	15.8	11	0	0	20000	26000	12.2	35.5	49.5	1	0.133
7007	35	62	14	1	0.6	17.5	12.6	0	0	12000	15000	21.2	40.5	56.5	1	0.17
7007B	35	62	14	1	0.6	15.8	11.4	0	0	9200	12000	27.6	40.5	56.5	1	0.17
7007C	35	62	14	1	0.6	19.1	13.7	0	0	17000	22000	13.5	40.5	56.5	1	0.17
7008	40	68	15	1	0.6	18.7	14.6	0	0	11000	14000	23.2	45.5	62.5	1	0.21
7008B	40	68	15	1	0.6	16.8	13.2	0	0	8300	11000	30.2	45.5	62.5	1	0.21
7008C	40	68	15	1	0.6	20.5	15.9	0	0	15000	20000	14.8	45.5	62.5	1	0.21
7009	45	75	16	1	0.6	22.2	17.7	0	0	10000	12000	25.3	50.5	69.5	1	0.26
7009B	45	75	16	1	0.6	20	16	0	0	7500	10000	33.2	50.5	69.5	1	0.26
7009C	45	75	16	1	0.6	24.4	19.3	0	0	14000	18000	16	50.5	69.5	1	0.26
7010	50	80	16	1	0.6	23.6	20.1	0	0	9200	11000	26.9	55.5	74.5	1	0.29
7010B	50	80	16	1	0.6	21.2	18.1	0	0	6900	9200	35.3	55.5	74.5	1	0.29
7010C	50	80	16	1	0.6	26	21.9	0	0	13000	17000	16.8	55.5	74.5	1	0.29
